1/ Command :

• PB

2/ Description :

This tool is designed for electrical drafting, allowing you to easily draw Push Button symbols commonly used in electrical schematics.

• Automated Drawing : Draws the complete push button symbol, including the button head, plate, and centerlines, in a single operation.

• Customizable Dimensions : You can specify the diameter of the button and the overall dimensions of the plate.

3/ How to Use :

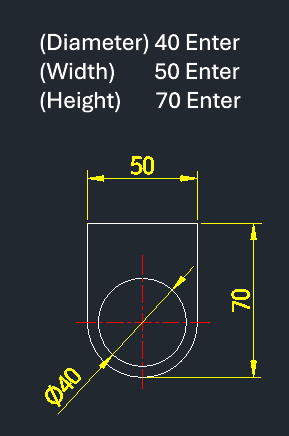

1. Type PB in the command line and press Enter.

2. Click the Center Point where you want to place the push button.

3. Enter the Diameter of the push button.

4. Enter the Overall Width (horizontal length) of the plate.

5. Enter the Overall Height (vertical length) of the plate.

6. The push button symbol, complete with centerlines, is drawn immediately.
