1/ Command :

• RIB

2/ Description :

This tool is designed for mechanical and plant design to automatically draw 4 Ribs around a circular pipe in the plan view.

• Auto-Rib Generation : Creates four ribs (stiffeners) equally spaced (90 degrees apart) around a　selected circle.

• Custom Dimensions : You can control the thickness of the rib material and the radial width/distance of the rib.

3/ How to Use :

1. Type RIB in the command line and press Enter.

2. Select the Circle (pipe) around which you want to draw the ribs.

3. Enter the Rib Thickness (Material Thickness).

4. Enter the Rib Distance (Width/Length of the rib extending from the pipe).

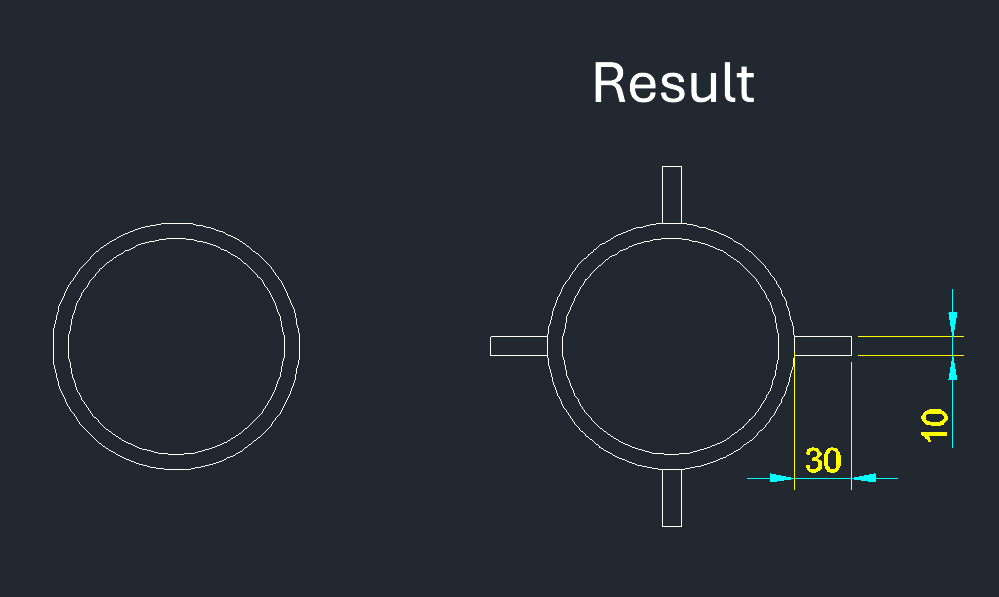

5. Four ribs are automatically drawn around the circle.
