1/ Command :

• DTOD

2/ Description :

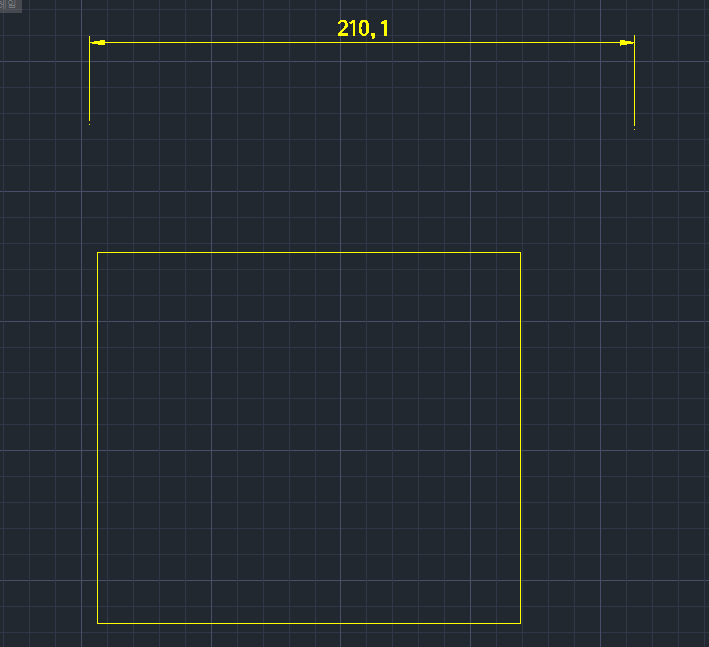

This tool allows you to measure the distance between two points on your drawing and instantly apply that measured value to an existing dimension object.

• Value Override : Useful when you need a dimension text to reflect a specific physical distance measured elsewhere, or to force a value based on a measurement.

• Format : The number format (decimal places) respects your current units settings (adjustable via the UNITS command).

3/ How to Use :

1. Type DTOD in the command line and press Enter.

2. Click the First Point to measure from.

3. Click the Second Point to measure to.

• The distance between these two points is calculated.

4. Select the Dimension Object you want to.

• The dimension text changes to match the measured distance.

• Note: If you　select a non-dimension object, the tool will prompt you again until a valid dimension is　selected.
