1/ Command :

• HOLE

2/ Description : This tool creates a hole within an object and automatically draws its centerline.

• Functionality: It streamlines the process of adding hole details by handling the geometry creation and centerline placement in one sequence.

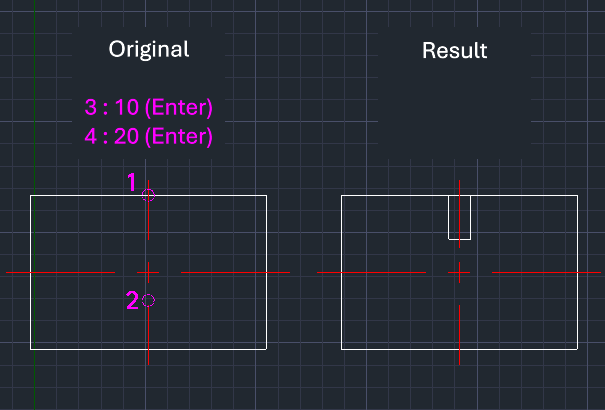

3/ How to Use :

1. Type HOLE in the command line and press Enter.

2. Click the First Intersection Point (Starting point of the hole opening).

3. Click the Second Point (Direction/Endpoint for the hole opening).

4. Enter the Width (Diameter) of the hole (e.g., 10) and press Enter.

5. Enter the Depth of the hole (e.g., 20) and press Enter.

6. The hole is drawn with the specified dimensions, and the centerline is added automatically.
