1/ Command :

• VTXT

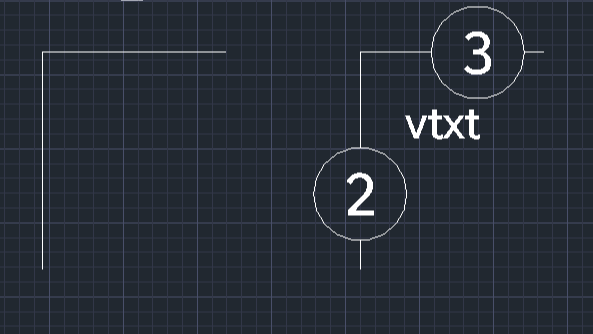

2/ Description : This tool　inserts a Single-Line Text enclosed in a Circle onto a horizontal or vertical line.

• Sequence Context: Like the previous electrical symbols, this tool requires you to　select the line and uses the standardized direction　selection method (click along the line).

• Symbol Scaling: On the first run, you set the　insertion scale (e.g., input 1 for a 3mm circle diameter). You can adjust this later using the FAC command.

3/ How to Use :

1. Type VTXT in the command line and press Enter.

2. (First Run Only) Enter the Symbol　Insertion Scale (e.g., 1 for 3mm).

3. Select the Line where the text and circle will be　inserted.

4. Enter the Text Content and press Enter.

5. The text enclosed in a circle is automatically drawn on the　selected line.
