Hi,

This is CADian.

We have prepared 400+ Lisp programs to aid your CAD experience, free of charge!

Full List of all CADian Lisps : [Full CADian Lisp List]

How to Install : [CADian Lisps Download & Install Guide]

====================================================

1/ Command :

• MB

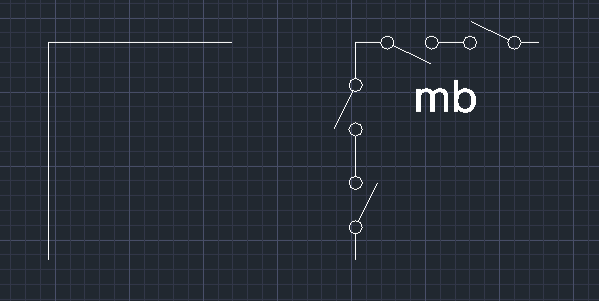

2/ Description : This tool automatically draws a Manual Contact Switch symbol on a line, useful for electrical sequence drawings.

• Sequence Context: This is the 101st Lisp tool released and follows thed operation method where you　select the line and then a point along the line to determine direction.

• Symbol Scaling: On the first run, you set the　insertion scale (e.g., input 1 for a 3mm circle diameter). You can adjust this later using the FAC command.

3/ How to Use :

1. Type MB in the command line and press Enter.

2. (First Run Only) Enter the Symbol　Insertion Scale (e.g., 1).

3. Select the Line where the symbol will be　inserted.

4. Click a point along the line to define the Direction (Up/Down or Left/Right).

5. The Manual Contact Switch symbol is automatically drawn at the　selected location.
