1/ Command :

• DBH

2/ Description :

This tool automatically draws lines to divide the space between two　selected lines into equal segments.

• Function: It is useful for quickly creating grids or dividing an area into equal parts without manual calculation.

• Requirement: If the boundary lines are Polylines, they must be exploded before using this command.

• Menu: Starting with this version, a dedicated menu is being added to the CADian interface to help users access tools without memorizing commands.

3/ How to Use :

1. Type DBH in the command line and press Enter.

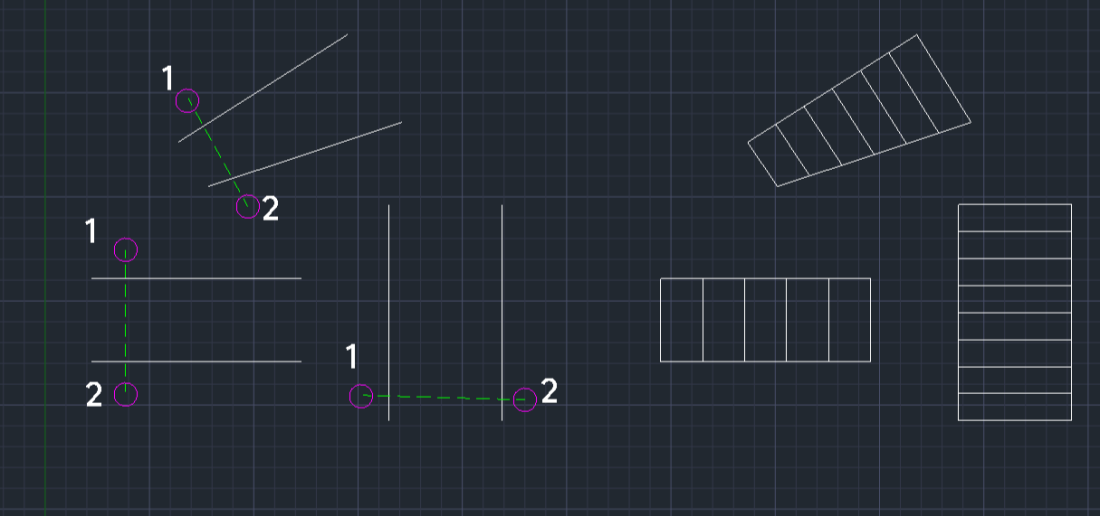

2. Select the two lines you wish to divide between. You do this by clicking a start point and an end point to create a crossing　selection window over the two lines.

3. Enter the Number of Divisions (how many equal parts you want) and press Enter.

4. The tool automatically draws the dividing lines between the two　selected boundaries.
