1/ Command :

• A​G

2/ Description :

This tool automatically draws Angle Steel (Equal-Leg Angle, 'ㄱ' shape), which is frequently used in mechanical, architectural, and electrical drawings.

• Function: It simplifies the drafting of standard angle steel sections by allowing users to　select from a list of predefined specifications.

• Update Note: A fix for incorrect sizes was applied on March 5th.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type AG in the command line and press Enter.

2. A new window or list will appear showing Angle Specifications.

3. Note the Index Number (1 ~ 42) corresponding to the desired angle size.

4. Enter the Index Number of the specification you want to use.

5. Click the　Insertion Point.

6. Enter the Rotation Angle.

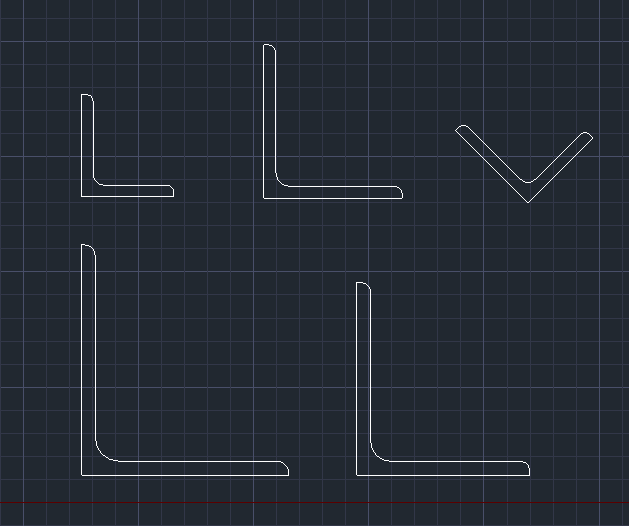

7. The　selected angle steel section is drawn at the specified location and angle.
