1/ Command :

• AGB

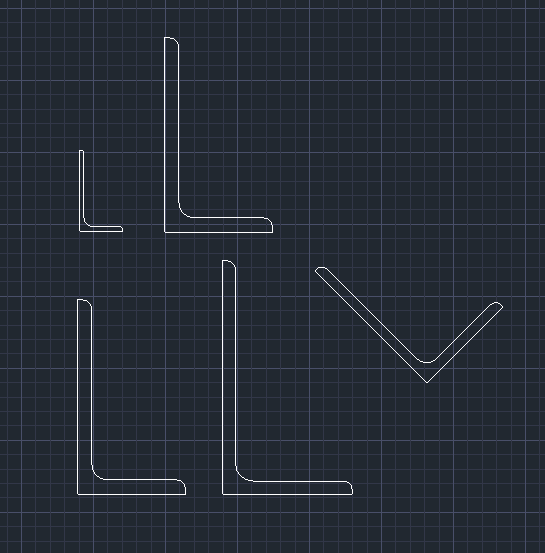

2/ Description : This tool automatically draws Unequal-Leg Angle Steel (L-shaped steel with different leg lengths), which is commonly used in mechanical, architectural, and electrical drawings.

• Function: Similar to the previous AG command, this tool streamlines the drafting process by allowing users to　select standard unequal-leg angle sections from a predefined list.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type AGB in the command line and press Enter.

2. A new window will appear displaying the Unequal-Leg Angle Specifications.

3. Note the Index Number (1 ~ 8) corresponding to the desired size.

4. Enter the Index Number of the specification you want to use.

5. Click the　Insertion Point.

6. Enter the Rotation Angle.

7. The　selected angle steel section is drawn at the specified location and angle.
