1/ Command :

• GRWD

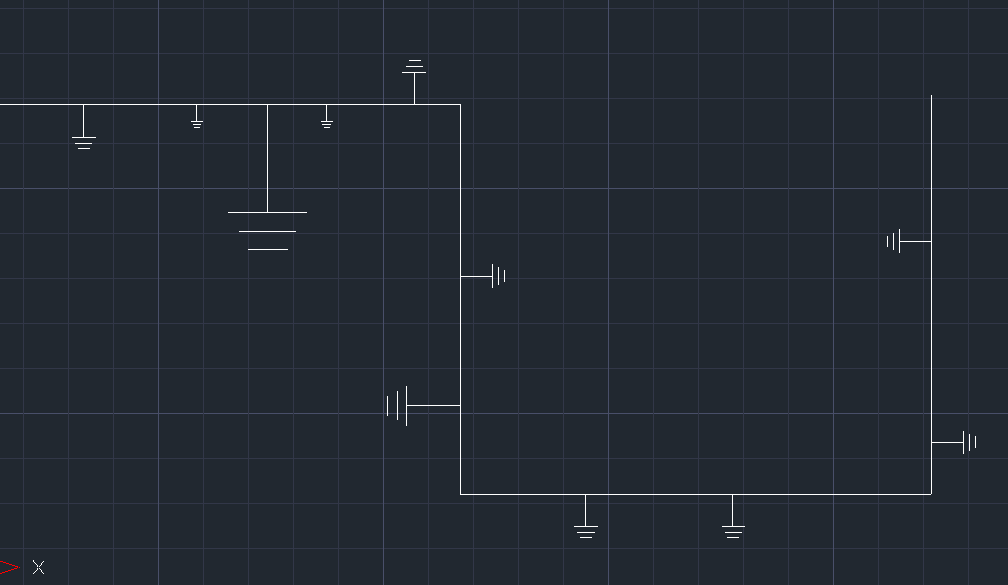

2/ Description : This tool automatically draws a grounding (earth) symbol on a sequence drawing.

• Function: It simplifies the process of adding ground symbols to electrical sequence diagrams by attaching them to　selected lines.

• Symbol Scaling: Similar to previous sequence tools, you can adjust the size of the symbol using the FAC command.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type GRWD in the command line and press Enter.

2. Select the Line to which the ground symbol will be attached.

3. Click a point to define the Direction where the symbol should be drawn.

4. The ground symbol is automatically generated.

5. (Optional) If the symbol size needs adjustment, run the FAC command to set a scale multiplier before drawing.
