1/ Command :

• RCUT

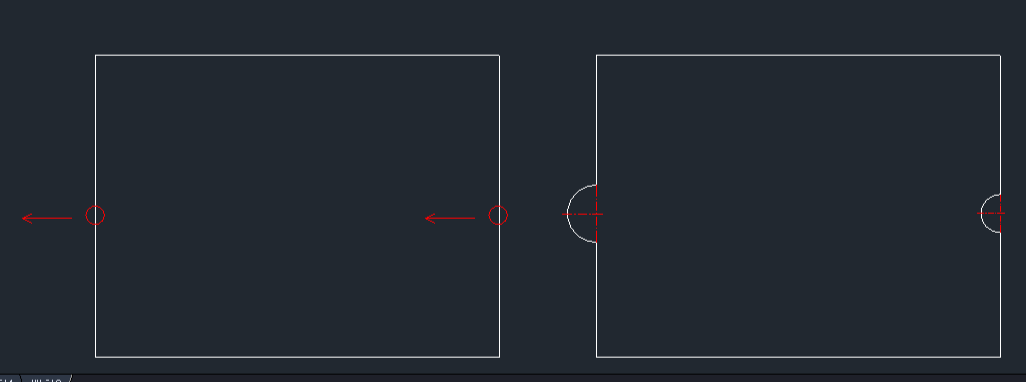

2/ Description : This tool automatically modifies an object by creating a semicircular cut or extension based on a center point and direction.

• Layer Automation: It automatically generates a "CENTER" layer for the center line if one does not already exist in the drawing.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type RCUT in the command line and press Enter.

2. Click the Center Point of the arc (use Object Snap for precision).

3. Click a point to define the Direction of the cut or extension.

4. Enter the Radius Value for the semicircle.

5. The semicircular modification is automatically applied to the object.
