1/ Command :

• CTRIM

2/ Description :

This tool is the final installment in the double-wall trimming series, designed to automatically trim the corner intersections of double walls.

• Precision: It requires clicking two specific points to identify the inner corner and the outer extensions.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

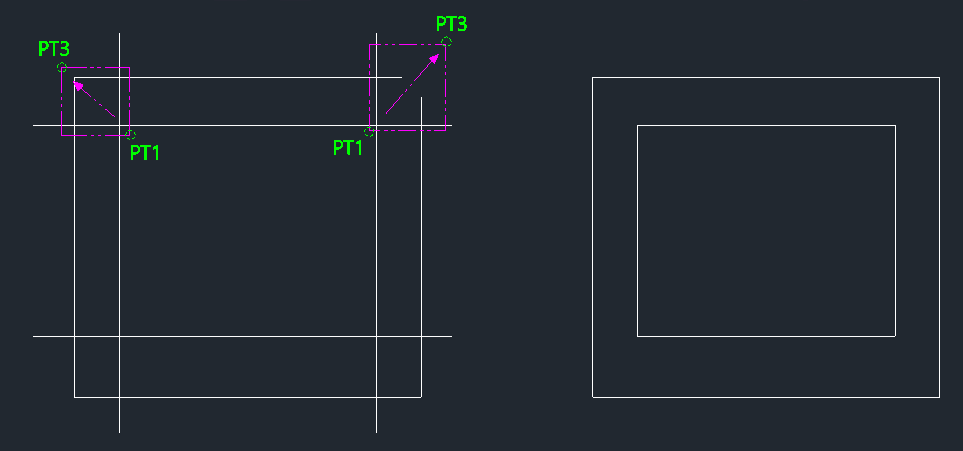

1. Type CTRIM in the command line and press Enter.

2. Click the First Point (PT1) inside the corner intersection.

• Note: You must click as close as possible to the intersection point for the tool to work correctly.

3. Click the Second Point (PT2) on the outside.

• Note: This point can be slightly further away, but it must cross the extending lines you want to trim.

4. The corner intersection is automatically cleaned up.
