Hi,

This is CADian.

We have prepared 400+ Lisp programs to aid your CAD experience, free of charge!

Full List of all CADian Lisps : [Full CADian Lisp List]

How to Install : [CADian Lisps Download & Install Guide]

====================================================

1/ Command :

• JL

2/ Description :

This tool automatically joins two separated lines that share the same angle (collinear) into a single continuous line.

• Application: It is useful for repairing broken horizontal or inclined lines that have been split or broken into two segments.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

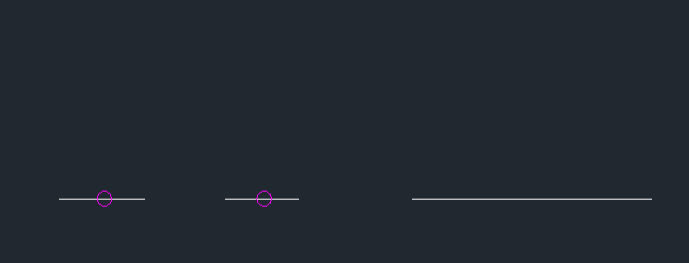

1. Type jl in the command line and press Enter.

2. Click the First Line segment.

3. Click the Second Line segment.

4. The two segments are merged into one single line.
