1/ Command :

• RIVET

2/ Description :

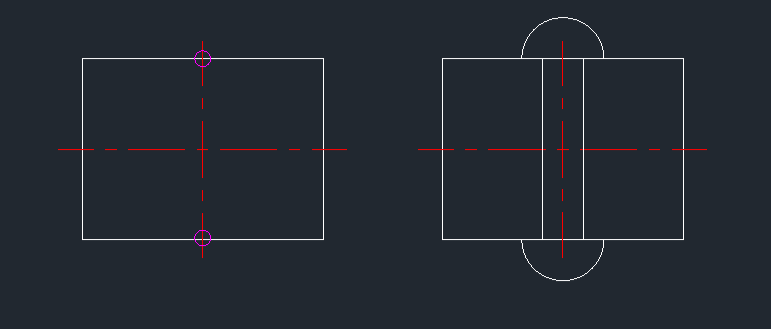

This tool is designed to draw rivets for mechanical drawings based on user-defined points and dimensions.

• Versatility: It supports drawing rivets in any direction or orientation.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type rivet in the command line and press Enter.

2. Click the First Center Point of the rivet.

3. Click the Second Center Point (defining the length and direction).

4. Enter the Diameter of the Rivet Body.

5. Enter the Diameter of the Rivet Head.

6. The rivet is automatically drawn with the specified dimensions.
