1/ Command :

• PADAN2

2/ Description :
This tool is the second iteration of the break line (cut line) drawing tool, designed for representing cylindrical objects like pipes.

• Directionality: It requires specific input order (Bottom-Left to Top-Right) to generate the correct shape.

• Aspect Ratio: The visual result depends on the ratio of the rectangle defined by the two points; avoiding excessively wide rectangles yields better results.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

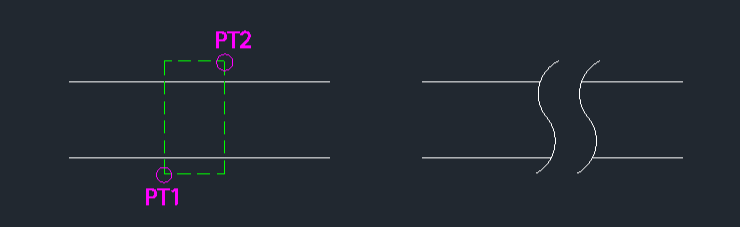

1. Type padan2 in the command line and press Enter.

2. Click the Bottom-Left Corner of the area where the break line will be drawn.

3. Click the Top-Right Corner of the area.

4. The break line symbol is automatically generated within the defined boundary.
