1/ Command :

• TXTLEA

2/ Description :

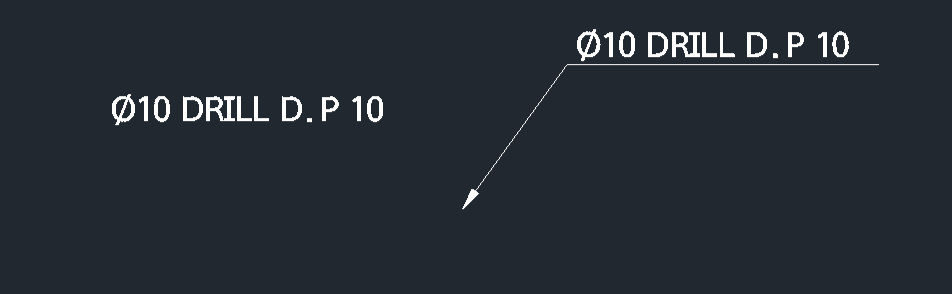

This tool allows you to create a leader line by　selecting an existing text object, automatically moving the text to the end of the leader.

• Efficiency: Instead of drawing a leader and then manually moving text to align with it, this command integrates both steps.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type txtlea in the command line and press Enter.

2. Select the Existing Text object.

3. Click the Endpoint of the Leader (the arrow tip location).

4. Click the Position for the Text (where the text will be moved to).

5. The leader is drawn, and the text is automatically moved and aligned to the end of the leader line.
