1/ Command :

• PWO

2/ Description :
This tool draws a wide polyline filled with a solid hatch and bordered by an outline.

• Visual Effect: It creates a filled strip (like a thick trace) with a distinct border color.

• Color Setting: The outline (border) color is preset to Color 1 (Red).

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type pwo in the command line and press Enter.

2. Click the First Point of the polyline.

3. Click the Second Point to define the segment.

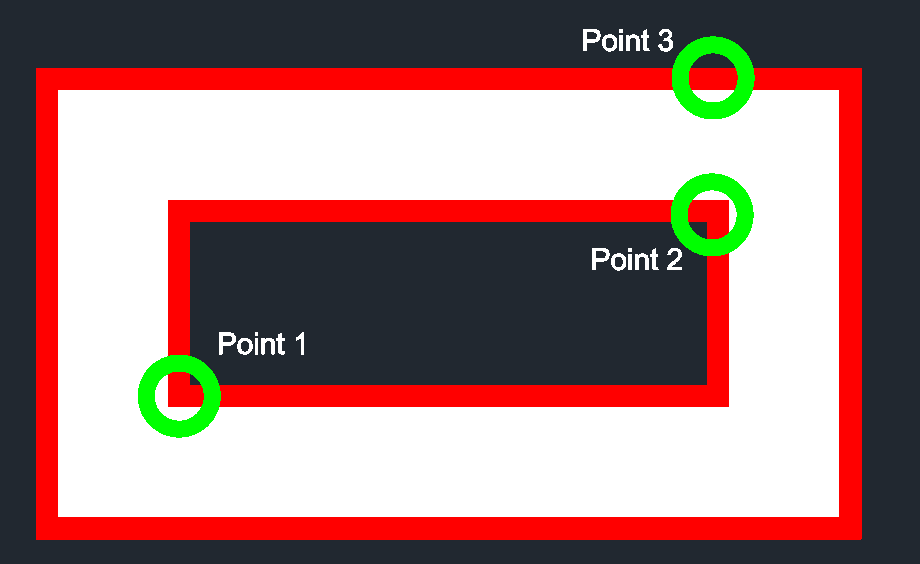

4. Define the Thickness (Width):

• You can either pick two points on the screen to define the width visually.

• Or type a numeric value for the width and press Enter.

5. The polyline is drawn with a solid fill and a red outline.
