1/ Command :

• BGG

2/ Description :

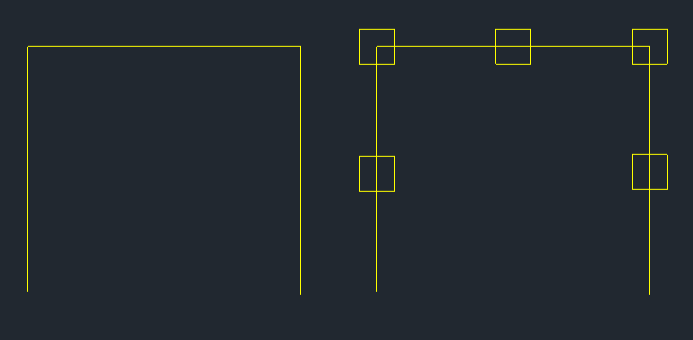

This tool allows you to　insert a branch device symbol (often used for switches or splitters) directly onto a line in sequence drawings.

• Symbol Scale: Upon the first execution, it prompts for an electrical symbol　insertion scale. At a scale of 1, the box width is 8mm.

• Scale Adjustment: You can adjust the symbol scale during the command by typing the sub-command FAC.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type bgg in the command line and press Enter.

2. Initial Setup (First Run): If prompted, enter the desired　Insertion Scale for the electrical symbol.

3. Select the Line where you want to　insert the branch device. The symbol is automatically drawn at that location.

4. To Change Scale:

• Type fac and press Enter.

• Input the new Scale Value.

• Continue　selecting lines to　insert symbols at the new scale.
