1/ Command :

• MAR

2/ Description :
This tool allows you to draw multiple arrows originating from different points, converging to a single leader line with text annotation.

• Efficiency: Instead of manually drawing individual leaders and editing them to merge, this tool automates the creation of a "many-to-one" leader style, commonly used to indicate multiple items sharing the same description.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type mar in the command line and press Enter.

2. Click the First Point (start of the first arrow).

3. Click subsequent Points (starts of additional arrows) as needed.

4. Press Enter when you are done　selecting arrow start points.

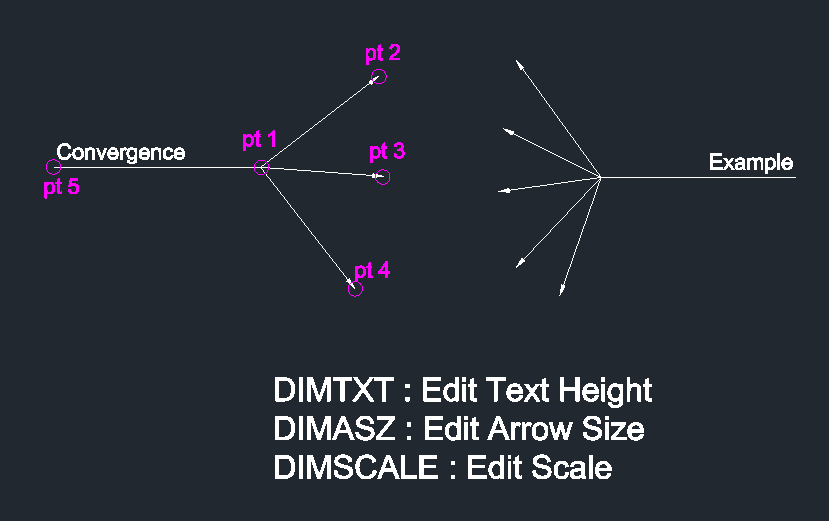

5. Click the Convergence Point (where the leader line ends/underlines text - ensure this is a horizontal click).

6. Enter the Text Content.

7. Press Enter twice to finish the command.
