1/ Command :

• COVER

2/ Description :
This tool automates the process of drawing a cover shape (mechanical part) by specifying its dimensions and orientation points.

• Efficiency: It simplifies the creation of cover geometries by sequentially inputting diameter and distance values.

• Direction Control: The drawing direction is determined by the second point　selected;　selecting the opposite direction will draw the cover in reverse.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

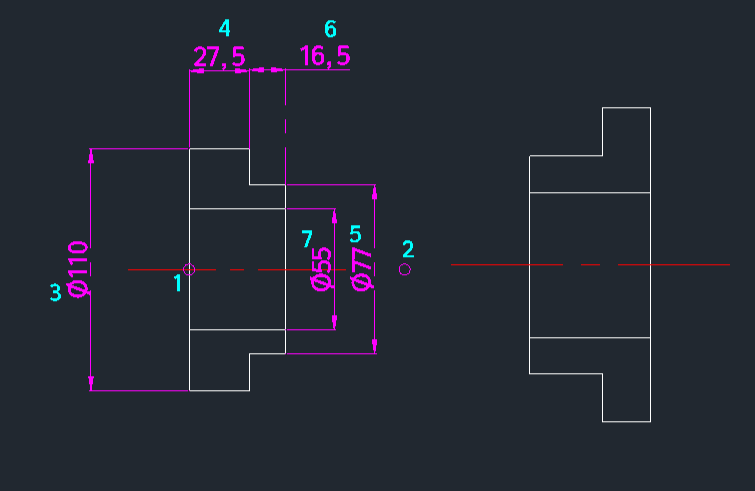

3/ How to Use :

1. Type cover in the command line and press Enter.

2. Click Point 1 (Start point).

3. Click Point 2 (Direction point).

4. Enter Diameter 1 (First diameter).

5. Enter Distance 1 (First length/distance).

6. Enter Diameter 2 (Second diameter).

7. Enter Distance 2 (Second length/distance).

8. Enter Diameter 3 (Third diameter).

9. The cover shape is automatically drawn based on the inputs.
