1/ Command :

• RAIN

2/ Description :
This tool allows you to draw multiple vertical lines simultaneously descending from　selected points to a target horizontal line.

• Batch Drawing: It simulates "rain" byping vertical lines from multiple specified points down to a single horizontal reference line in one action.

• Limitation: This tool is designed specifically for vertical lines and supports a maximum of 8 points per execution.

• Compatibility: This is a dedicated CADian Lisp tool and works only within CADian.

3/ How to Use :

1. Type rain in the command line and press Enter.

2. Enter the Number of Points (lines) you want to draw (up to 8).

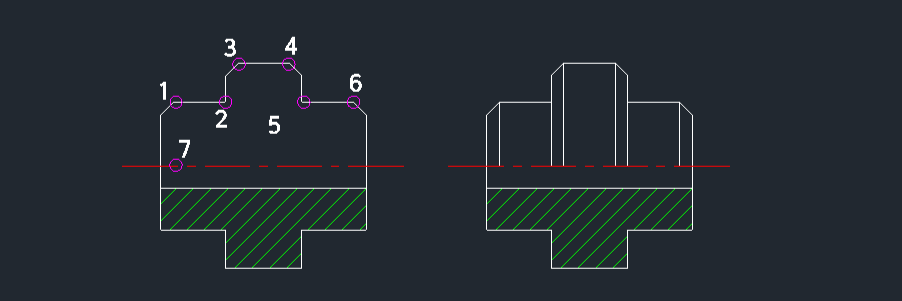

3. Click the Start Points (e.g., points 1, 2, 3...) from where the vertical lines will originate.

4. Finally, click the Horizontal Reference Line (the target line where the vertical lines will end).

5. All vertical lines are drawn at once from the　selected points to the horizontal line.
