1/ Command :

• LP

2/ Description :

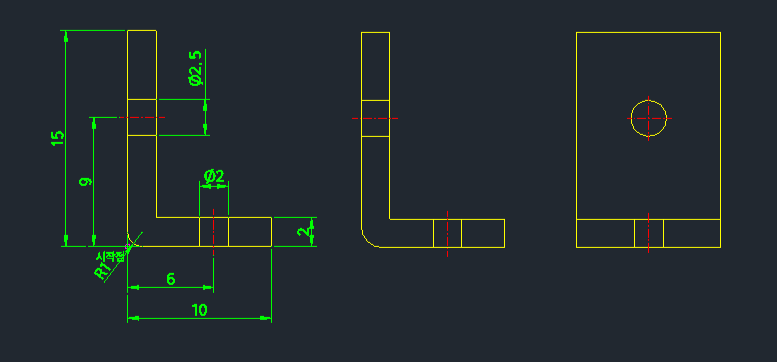

This tool automatically draws an L-shaped bent plate, including the side view, based on user-defined dimensions.

• Automation: Automatically creates the plate geometry with options to include holes and centerlines.

• Inputs: Requires specifying material thickness, bend radius, lengths, and hole configurations.

3/ How to Use :

1. Type lp in the command line and press Enter.

2. Click the Start Point (Bottom-Left corner).

3. Click a point for Horizontal Direction, then a point for Vertical Direction (forming a 90-degree angle).

4. Enter the Material Thickness.

5. Enter the Bend Radius (bottom-left corner).

6. Enter the Total Horizontal Length and Total Vertical Length.

7. Draw Centerlines? (Type Y for yes, N for no).

8. (If Y) Enter Centerline Distances and Hole Diameters as prompted.
