Hi,

This is CADian.

We have prepared 400+ Lisp programs to aid your CAD experience, free of charge!

Full List of all CADian Lisps : [Full CADian Lisp List]

How to Install : [CADian Lisps Download & Install Guide]

====================================================

1/ Command :

• TPIN

2/ Description :
This tool automatically draws the front view and side view of a T-shaped pin, including dimensions, in a single operation.

• Automation: Generates the complete pin geometry (head and shaft) along with corresponding views and dimensions based on user inputs.

• Inputs: Requires specifying diameters for the head and shaft, lengths for both sections, and precision for the diameter symbols.

3/ How to Use :

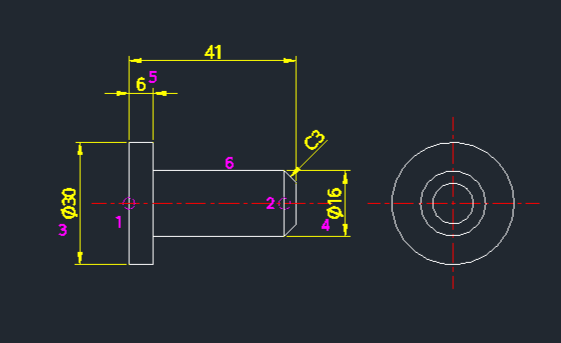

1. Type tpin in the command line and press Enter.

2. Click the　Insertion Point (Position 1).

3. Click the Direction (Position 2).

4. Enter the Large Diameter (Head).

5. Enter the Small Diameter (Shaft).

6. Enter the First Length.

7. Enter the Second Length.

8. Enter the Decimal Places (for Phi dimension symbol precision).
