1/ Command :

• SLAR

2/ Description :

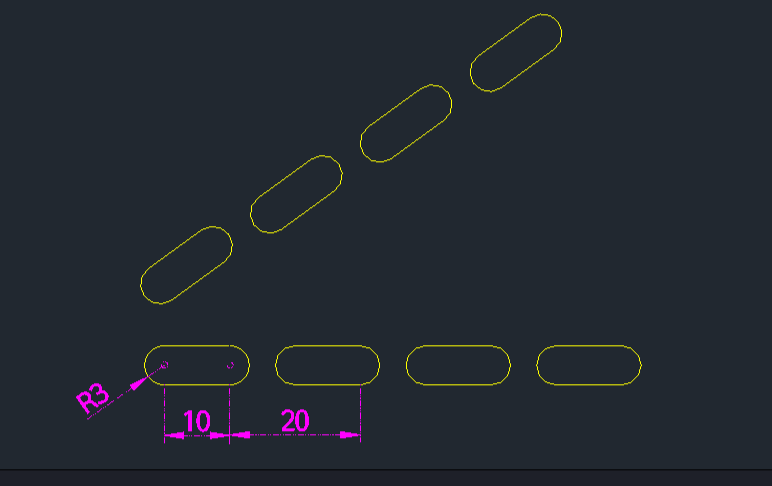

This tool draws a slot shape and simultaneously creates a linear array of it in a specified direction.

• Automation: Combines the drawing of a slot and the array command into a single workflow.

• Future: The author mentions a future will include the ability to automatically draw centerlines for the slots.

3/ How to Use :

1. Type slar in the command line and press Enter.

2. Click the Left Center Point of the first slot.

3. Click the Direction where the slot (and array) will be drawn.

4. Enter the Distance Between Centers (Slot Length).

5. Enter the Pitch Distance (Distance between array items).

6. Enter the Total Quantity of slots.
