1/ Command :

• BOLT

2/ Description :

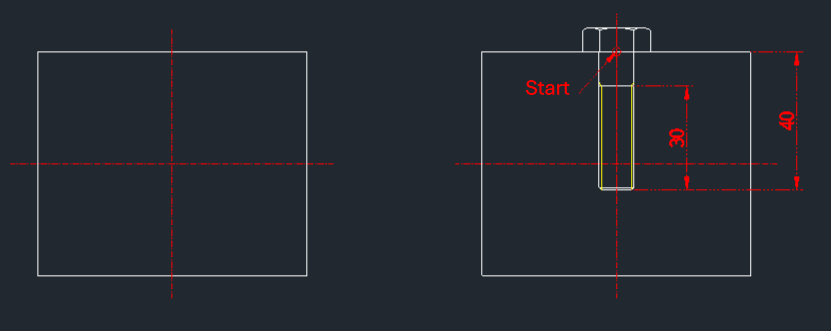

This tool automatically draws the side view of a hexagonal bolt based on standard specifications.

• Automation: Generates the complete side view including the hex head and threaded shaft.

• Inputs: Requires the bolt specification (diameter), total length, and effective thread length.

3/ How to Use :

1. Type bolt in the command line and press Enter.

2. Enter the Bolt Specification (Size) as a number (e.g., 10) and press Enter.

3. Click the Start Point.

4. Click the Second Point (Direction).

5. Enter the Total Length.

6. Enter the Effective Thread Length.
