1/ Command :

• NUT

2/ Description :

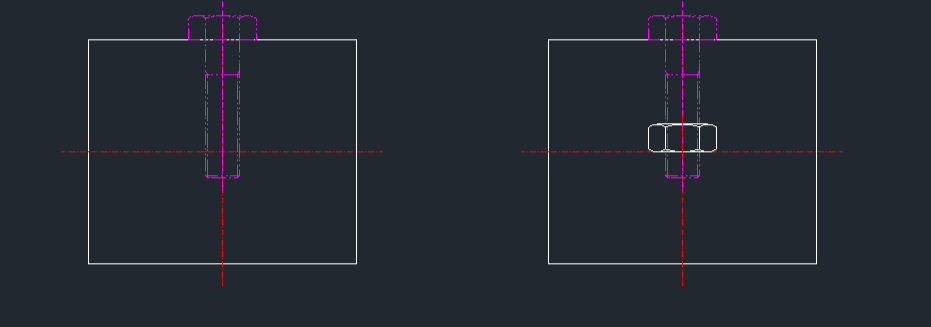

This tool automatically draws the side view of a hexagonal nut based on standard specifications.

• Automation: Generates the complete side view geometry of a hex nut.

• Standards: Supports standard hex nut sizes: M2, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 24, and 30.

3/ How to Use :

1. Type nut in the command line and press Enter.

2. Enter the Nut Specification (Size) as a number (e.g., 10) and press Enter.

3. Click the Start Point.

4. Click the Second Point (Direction).
