1/ Command :

• ESLOT4

2/ Description :

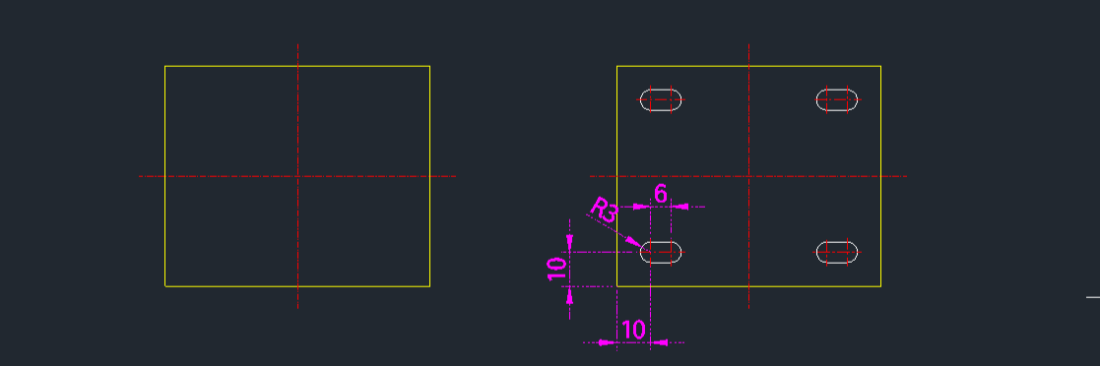

This tool automatically draws four slots (one in each corner) inside a specified rectangular area, including their centerlines.

• Automation: Quickly generates four symmetrically placed slots within a bounding box.

• Inputs: Requires defining the rectangle boundary, offsets for slot positioning, slot radius, and slot length.

3/ How to Use :

1. Type eslot4 in the command line and press Enter.

2. Click the Bottom-Left Point of the rectangle.

3. Click the Top-Right Point of the rectangle.

4. Enter the Horizontal Offset (distance from the edge to the first slot center).

5. Enter the Vertical Offset (distance from the edge to the first slot center).

6. Enter the Slot Radius.

7. Enter the Distance Between Slot Centers (Slot Length).
