1/ Command :

• RCTT

2/ Description :
This tool automatically draws centerlines within a defined rectangular area.

• Version 2: An improved version of the previous RCT command, designed to be easier to use and less stressful for creating centerlines.

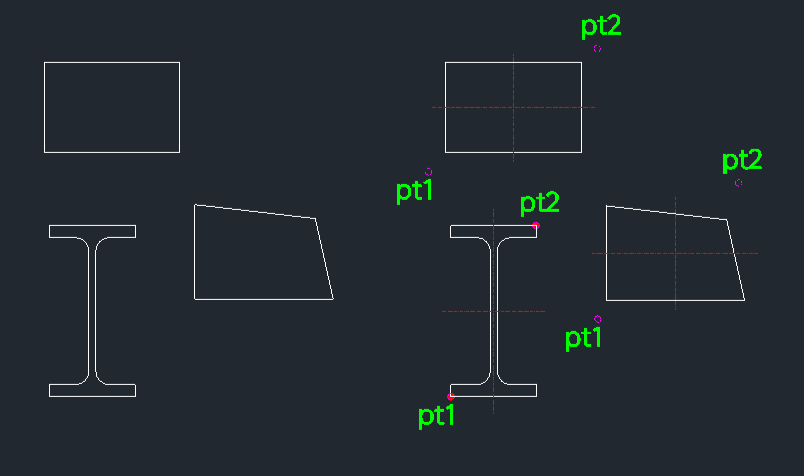

• Automation: Generates crosshair centerlines based on the rectangle's diagonal points.

3/ How to Use :

1. Type rctt in the command line and press Enter.

2. Click the Bottom-Left Corner of the rectangle.

3. Click the Top-Right Corner of the rectangle.

4. The centerlines are automatically drawn.
