1/ Command :

• CLA

2/ Description :
This tool aligns the edges (quadrants) of　selected circles to a specified vertical reference line.

• Smart　Selection: It automatically filters only circles within the　selection window, ignoring other object types.

• Direction Sensing: If the reference line is on the right side of the circles, it aligns the right edges; if on the left, it aligns the left edges (based on the clicked line).

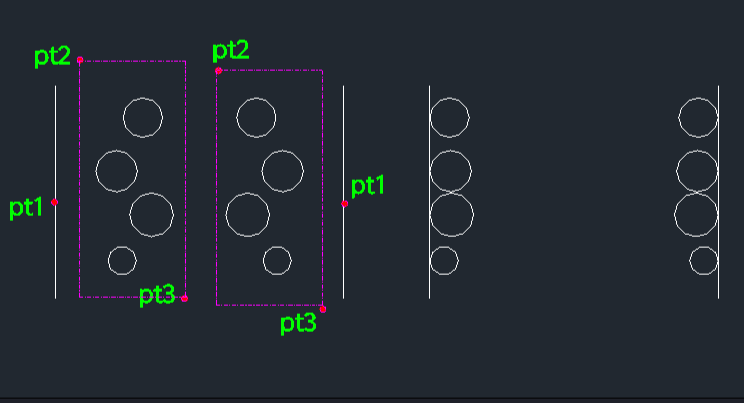

3/ How to Use :

1. Type cla in the command line and press Enter.

2. Select the Vertical Reference Line.

3. Window　Select the area containing the circles (Click PT2, then PT3).

4. The circles will move so that their edges align tangent to the　selected vertical line.
