1/ Command :

• MLB

2/ Description :

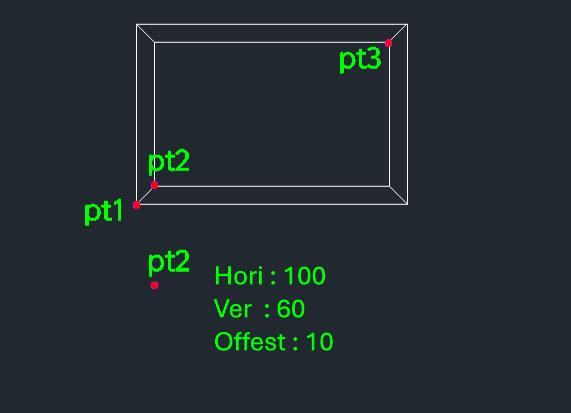

This tool automatically draws an electrical embedment box (junction box) with cross-bracing lines based on specified dimensions.

• Inputs: Requires the box's overall width and height, as well as an internal offset distance.

• Output: Generates a rectangular box with an inner offset rectangle and diagonal cross lines connecting corners (X shape).

3/ How to Use :

1. Type mlb in the command line and press Enter.

2. Click the Start Point (Bottom-Left corner, PT1).

3. Enter the Horizontal Length.

4. Enter the Vertical Length.

5. Enter the Internal Offset Distance.

6. Click Point 2 and Point 3 (to define direction/orientation).

7. The embedment box is drawn automatically.
