1/ Command :

• LJUMP

2/ Description :
This tool automatically creates "jump" arcs where lines cross in electrical or sequence drawings to indicate they do not connect.

• Standard: At a scale of 1, the jump arc is drawn with a 3mm diameter.

• Flexibility: You can change the jump size scale at any time during the command by typing fac.

3/ How to Use :

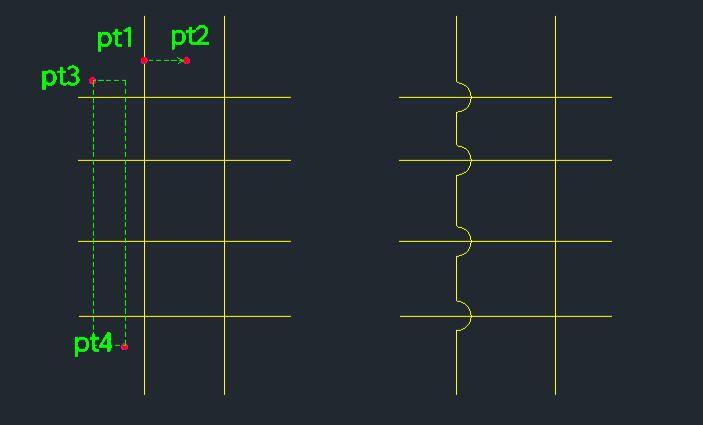

1. Type ljump in the command line and press Enter.

2. Enter the　Insertion Scale (default is 1).

3. Select the Base Line (horizontal or vertical) where the jumps will appear.

4. Select Crossing Objects (using a crossing window　selection, PT3 to PT4) that intersect the base line.

5. (Optional) Type fac and press Enter to change the scale if needed.
