1/ Command :

• TCDS

2/ Description :
This tool automatically draws three capacitors arranged in a triangular configuration for use in sequence drawings.

• Adjustment: The symbol size can be modified dynamically during the command using the fac option.

• Orientation: The drawing direction is determined by　selecting a line endpoint and a subsequent direction point.

3/ How to Use :

1. Type tcds in the command line and press Enter.

2. Enter the　Insertion Scale (required only on first run).

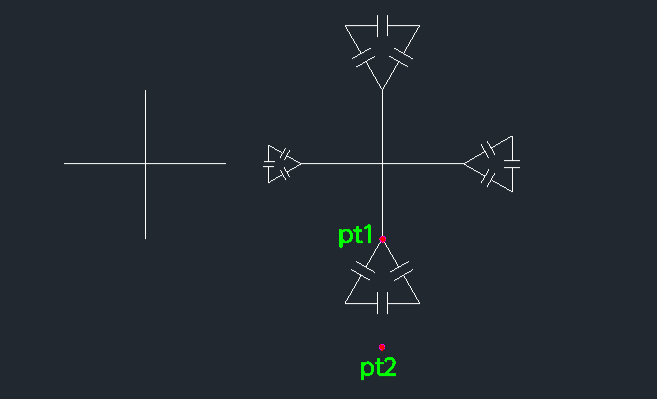

3. Click the Line Endpoint (PT1) where the symbol will attach.

4. Click the Direction Point (PT2) to determine orientation.

5. (Optional) Type fac and press Enter to change the scale if needed.
