1/ Command :

• JL

2/ Description :
This tool connects multiple broken or separate line segments into a single line, provided they share the same angle (collinear).

• Efficiency: Works via a crossing window　selection, allowing you to　select and repair multiple broken lines in one action.

• Condition: The lines must be aligned at the same angle to be joined.

3/ How to Use :

1. Type jl in the command line and press Enter.

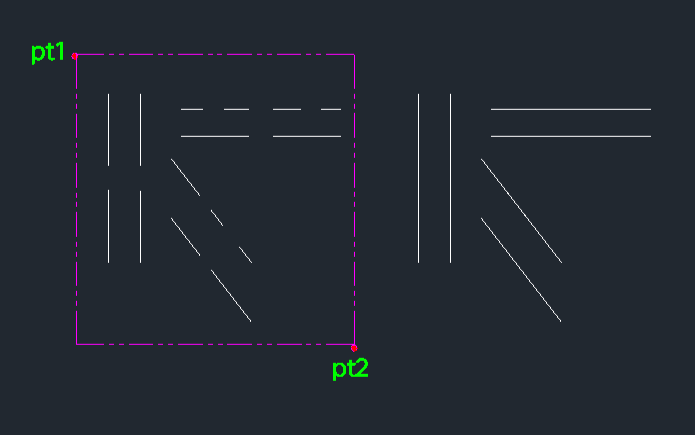

2. Select the area containing the broken lines using a Crossing Window (Click PT1 then PT2).

3. The separated line segments are automatically joined into single lines.
