1/ Command :

• ACLS

2/ Description :
This tool automatically　inserts an AC load switch symbol onto a line in a sequence drawing.

• Adjustment: The symbol size can be modified dynamically during the command using the fac option.

• Orientation: The drawing direction is determined by　selecting a point on the line and a subsequent direction point.

3/ How to Use :

1. Type acls in the command line and press Enter.

2. Enter the　Insertion Scale (required only on first run).

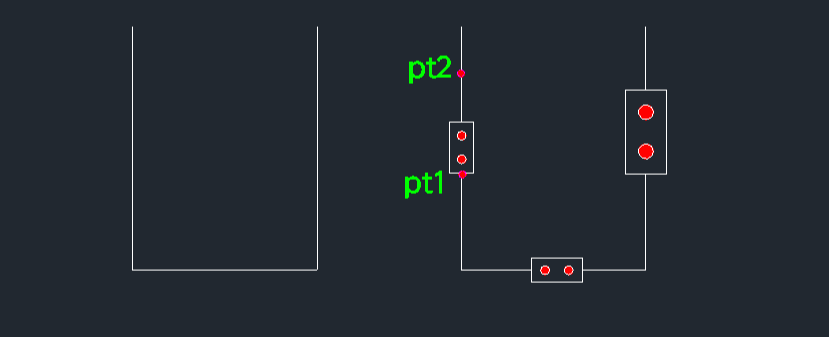

3. Click the Position on Line (PT1) where the switch will attach.

4. Click the Direction Point (PT2).

5. (Optional) Type fac and press Enter to change the scale if needed.
