1/ Command :

• ACB

2/ Description :
This tool automatically　inserts an AC breaker symbol onto a line in a sequence drawing based on user-defined points.

• Adjustment: The symbol's　insertion scale can be modified dynamically during the command using the fac option.

• Orientation: Direction is determined by clicking a point on the line followed by a second direction point.

3/ How to Use :

1. Type acb in the command line and press Enter.

2. Enter the　Insertion Scale (required only on first run).

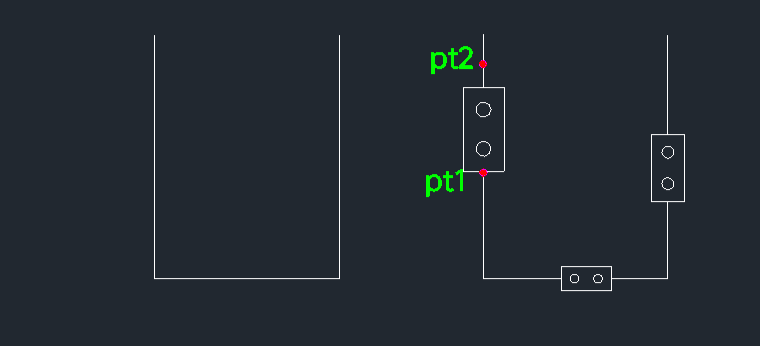

3. Click the Position on Line (PT1) where the breaker will attach.

4. Click the Direction Point (PT2).

5. (Optional) Type fac and press Enter to change the scale if needed.
