1/ Command :

• Padan0

2/ Description :

This tool allows you to quickly draw a break line (zig-zag line) by clicking a series of points.

• Workflow: Instead of drawing a single object, you click consecutive points to form the zig-zag pattern, and the tool smoothens the break line automatically.

• Flexibility: You can create complex break lines by continuing to click multiple points (zig-zagging) before finishing.

3/ How to Use :

1. Type padan0 in the command line and press Enter.

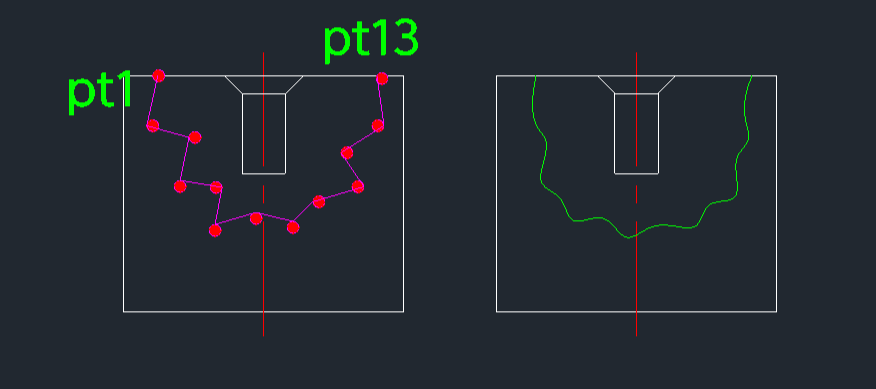

2. Click the Start Point (PT1).

3. Click subsequent points (PT2, PT3, etc.) in a zig-zag pattern to define the break path.

4. Click the Final Point (e.g., PT13) to complete the line.

5. Press Enter to finish; the smooth break line is generated.
