1/ Command :

• ACBORE

2/ Description :
This tool automatically draws the profile of a counterbore hole based on standard metric screw specifications provided by the user.

• Standardization: Generates geometry matching specific metric screw sizes (e.g., entering "8" creates dimensions for an M8 screw).

• Input: Requires the metric size number (without "M") and two points to define the location and depth.

3/ How to Use :

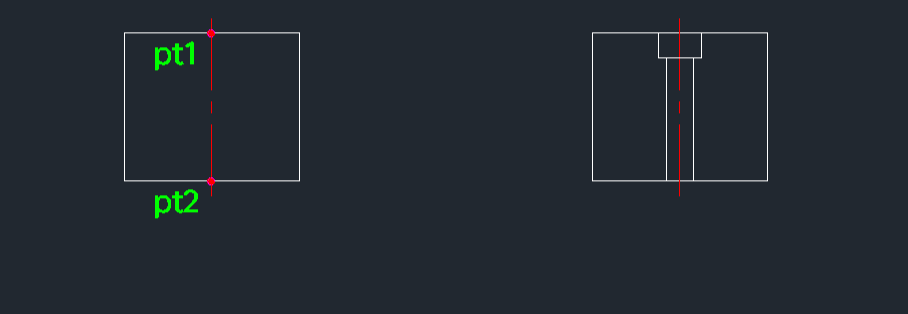

1. Type acbore in the command line and press Enter.

2. Enter the Metric Screw Size (number only, e.g., 8 for M8).

3. Click the Start Point (PT1).

4. Click the End Point (PT2).

5. The counterbore hole profile is drawn automatically.
