1/ Command :

• ANO

2/ Description :
This tool automatically fills vertical table cells with sequential numbers based on a　selected range.

• Direction Control: Users can choose whether the numbers increase from "Top to Bottom" or "Bottom to Top".

• Auto-Scaling: The text size is automatically calculated and adjusted according to the size of the table cells.

3/ How to Use :

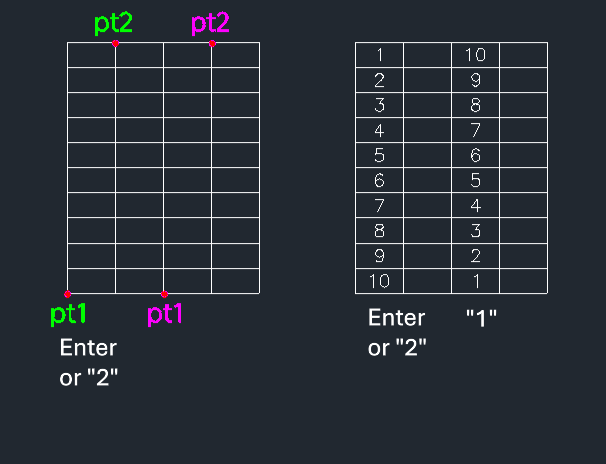

1. Type ano in the command line and press Enter.

2. Click the First Point (PT1) of the column range.

3. Click the Second Point (PT2) of the column range.

4. Select the numbering direction:

• Type 1: Numbers increase from Bottom to Top.

• Type 2 (or press Enter): Numbers increase from Top to Bottom.

5. The numbers are automatically generated inside the cells.
