1/ Command :

• KEYHS

2/ Description :
This tool allows you to easily draw the cross-section of a key groove by specifying 5 points.

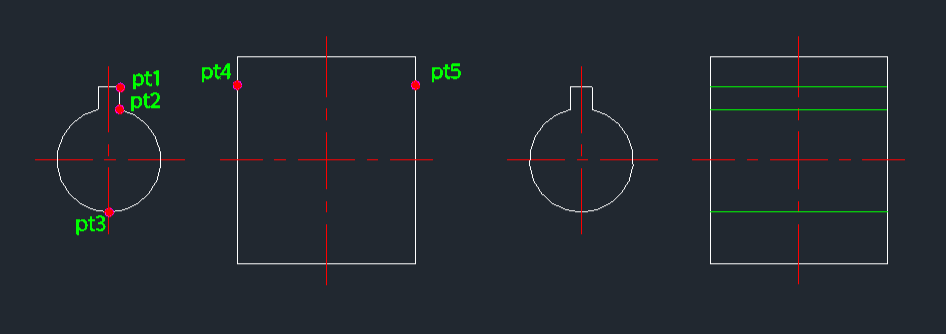

• Sequential Input: Automatically generates the correct section shape by clicking points PT1 through PT5 in order.

3/ How to Use :

1. Type keyhs in the command line and press Enter.

2. Click points PT1, PT2, and PT3 in sequence.

3. Continue to click points PT4 and PT5 in sequence.

4. The section line of the key groove is automatically drawn on the right.
