1/ Command :

• SECTAA

2/ Description :
This tool automatically draws a standard "SECTION A-A" section mark, including the arrow and text label.

• Dynamic Direction: The direction and filling of the arrow symbol automatically adjust based on the relative positions of the two points you click (the endpoint and the upper-right point).

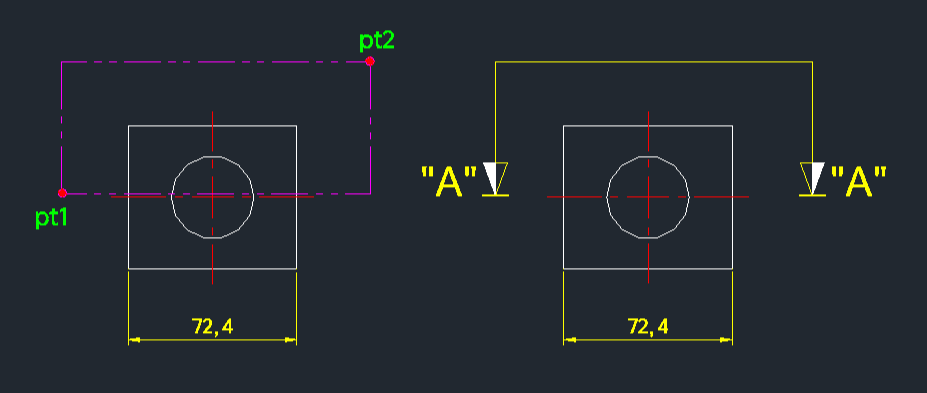

3/ How to Use :

1. Type sectaa in the command line and press Enter.

2. Click the Arrow End Point (PT1).

3. Click the Upper Right Point (PT2) where the text label should generally align.

4. The section mark "SECTION A-A" with the appropriate arrow is drawn.
